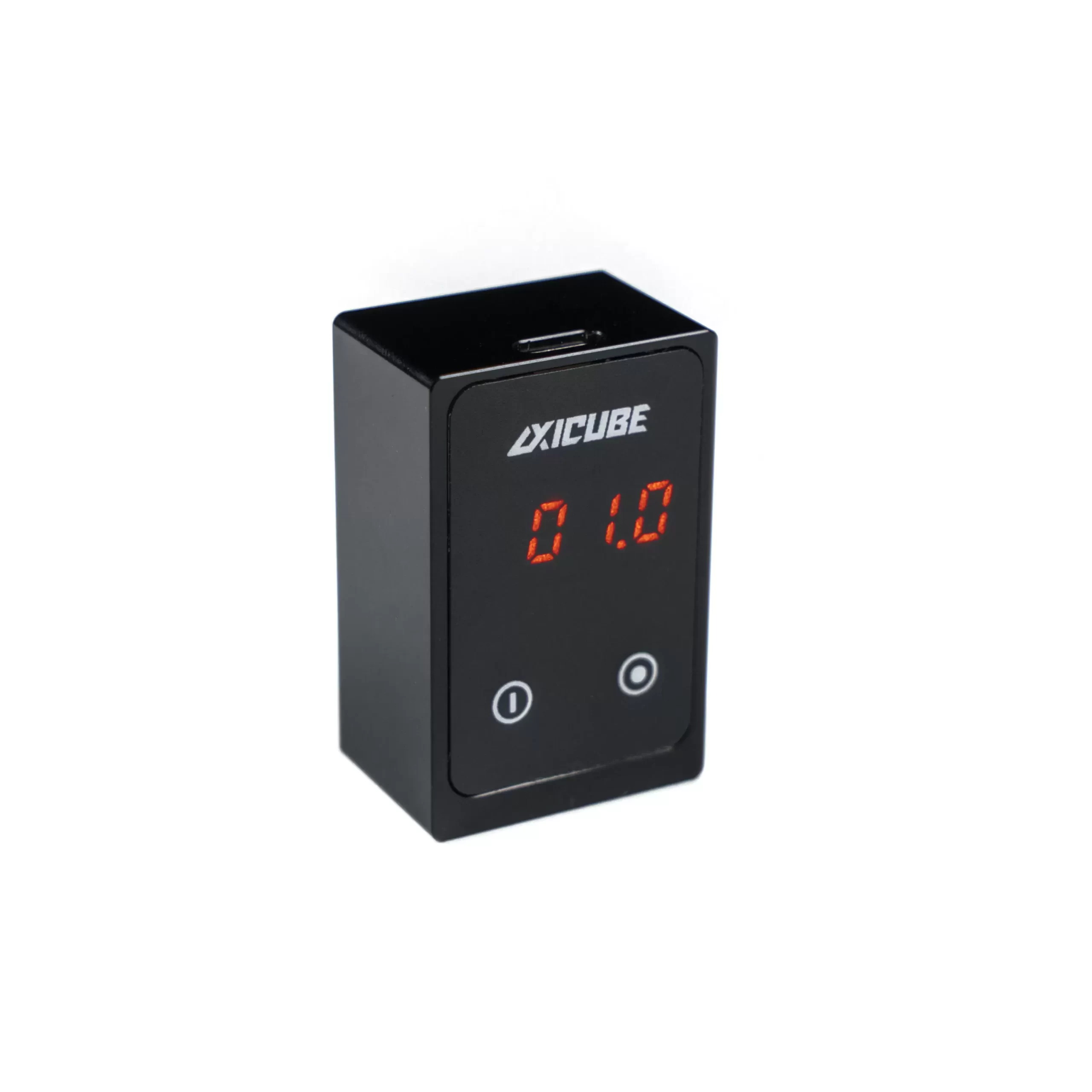

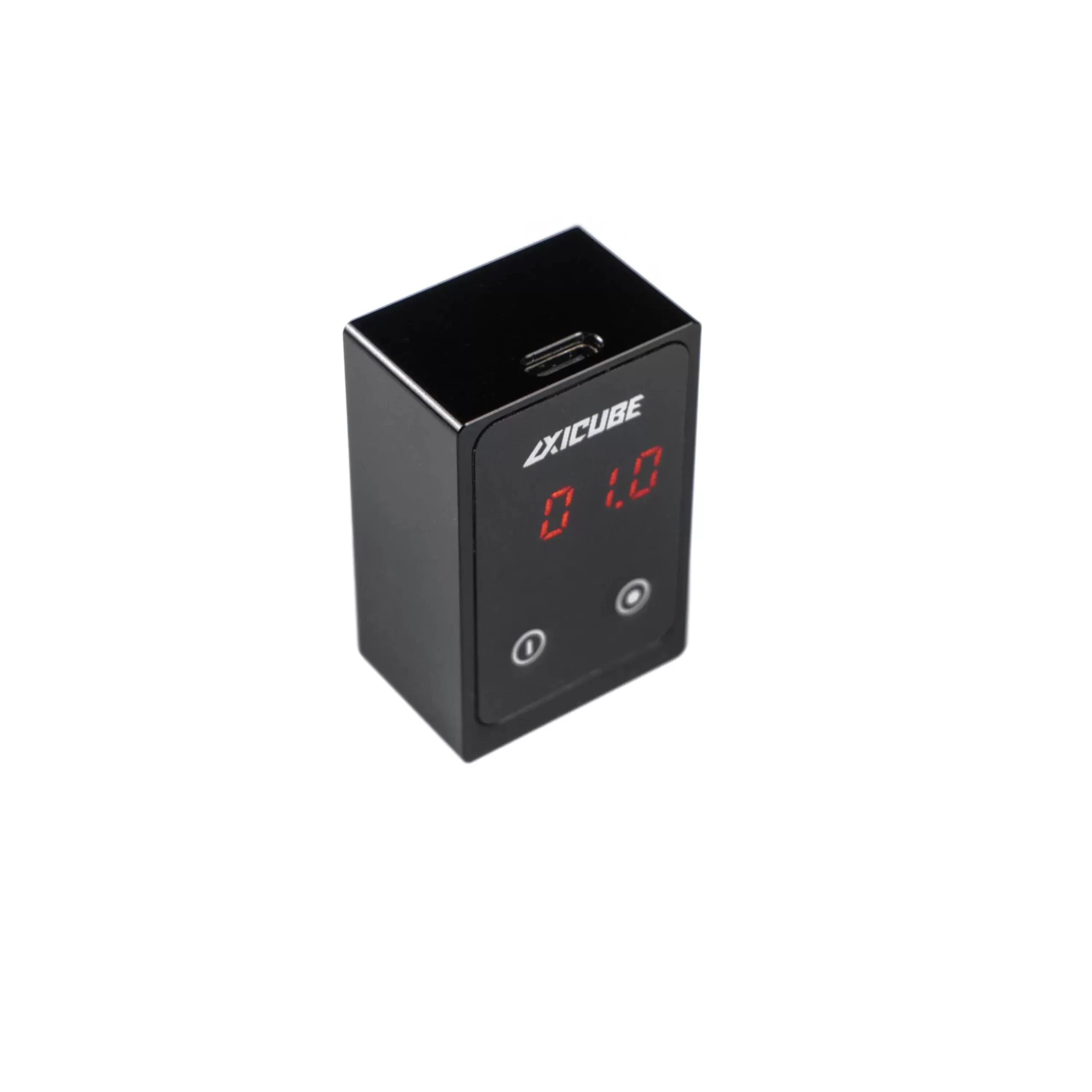

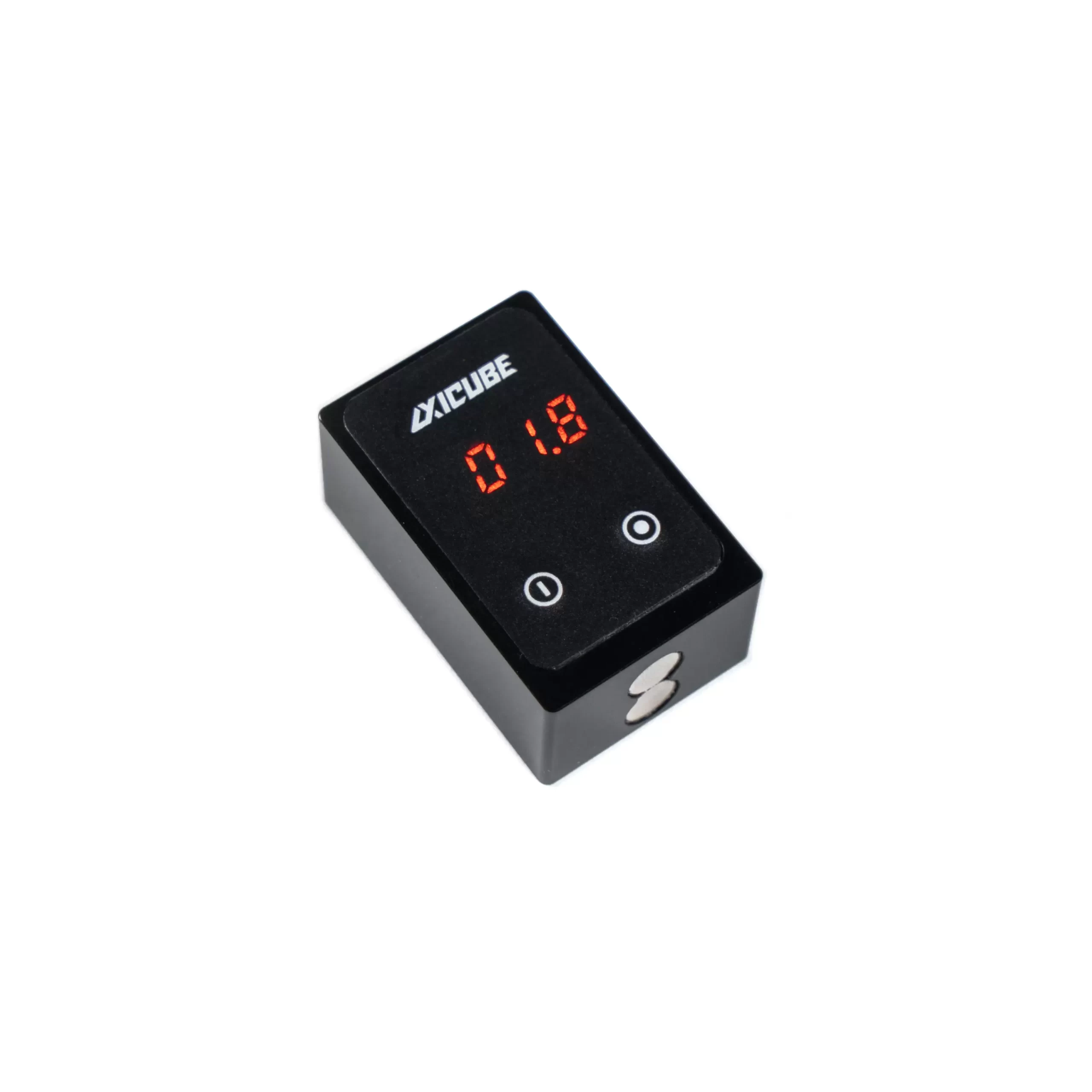

Axicube T2 electronic angle meter

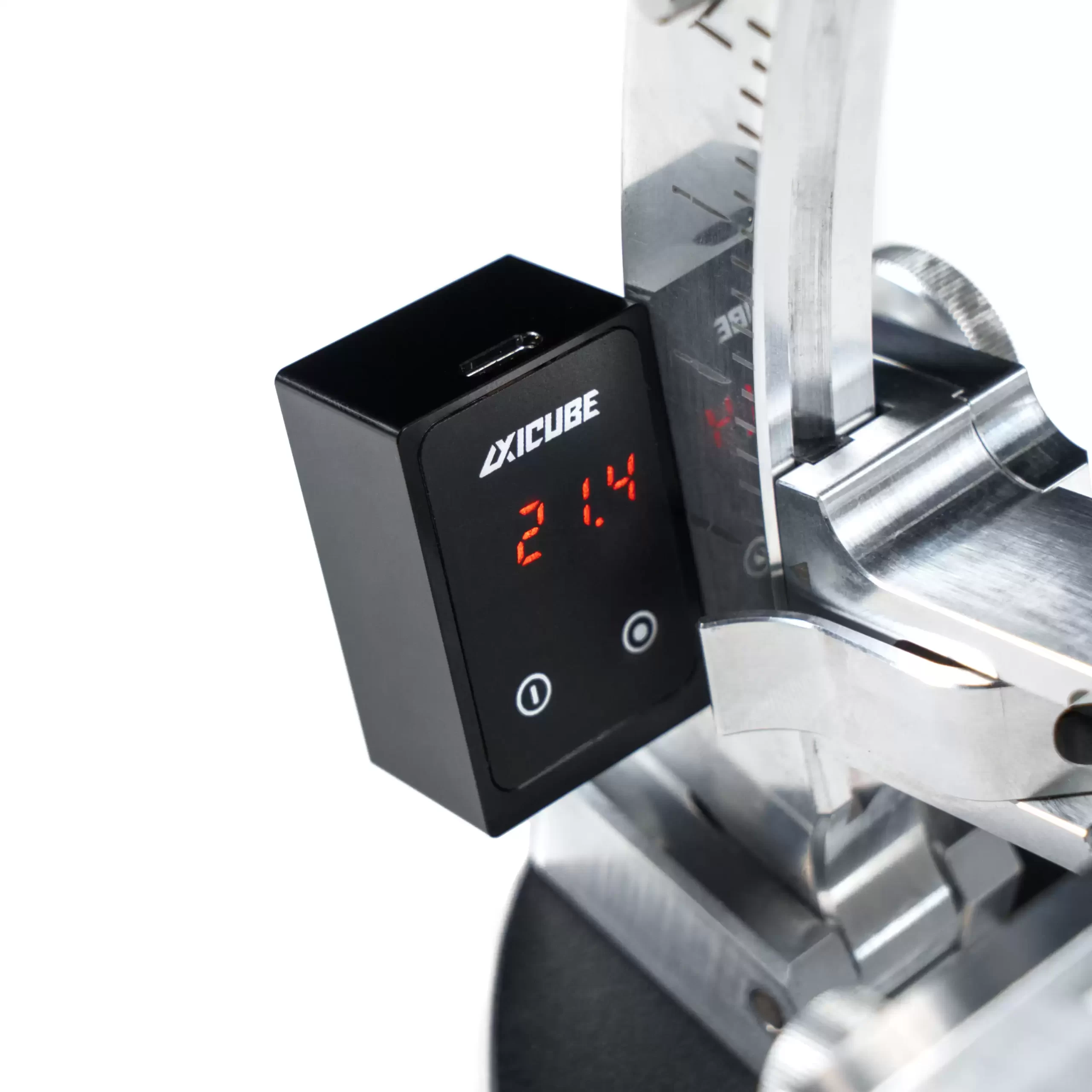

The new Axicube T2 will quickly and accurately show the slope of the abrasive guide to correctly set the required sharpening angle. Axicube T2 will be an effective assistant when working with any knife sharpening device.

The angle gauge has 4 modes:
P1. Inclinometer, will show the absolute slope of the plane relative to the gravitational field of the Earth.

P2. Angle gauge for sharpening systems with Kadet type angle setting mechanics (due to the movement of the rotary mechanism)
P3. Angle sharpener for sharpening systems with angle setting mechanics of the Profile type (due to the movement of the swivel unit)
P4. Household angle gauge for measuring angles between two planes.

At the heart of the angle meter is a high-precision iMEMS sensor that detects the angle in two axes.

The angle meter has compact dimensions, which allows you to work with Axicube T2 on any sharpening device, as well as to use it to measure angles on various professional and household appliances (machine tools, construction levels, circular and mitre saws, etc.).

Axicube T2 has an all-metal aluminum housing and at the same time the minimum weight of 75 grams.

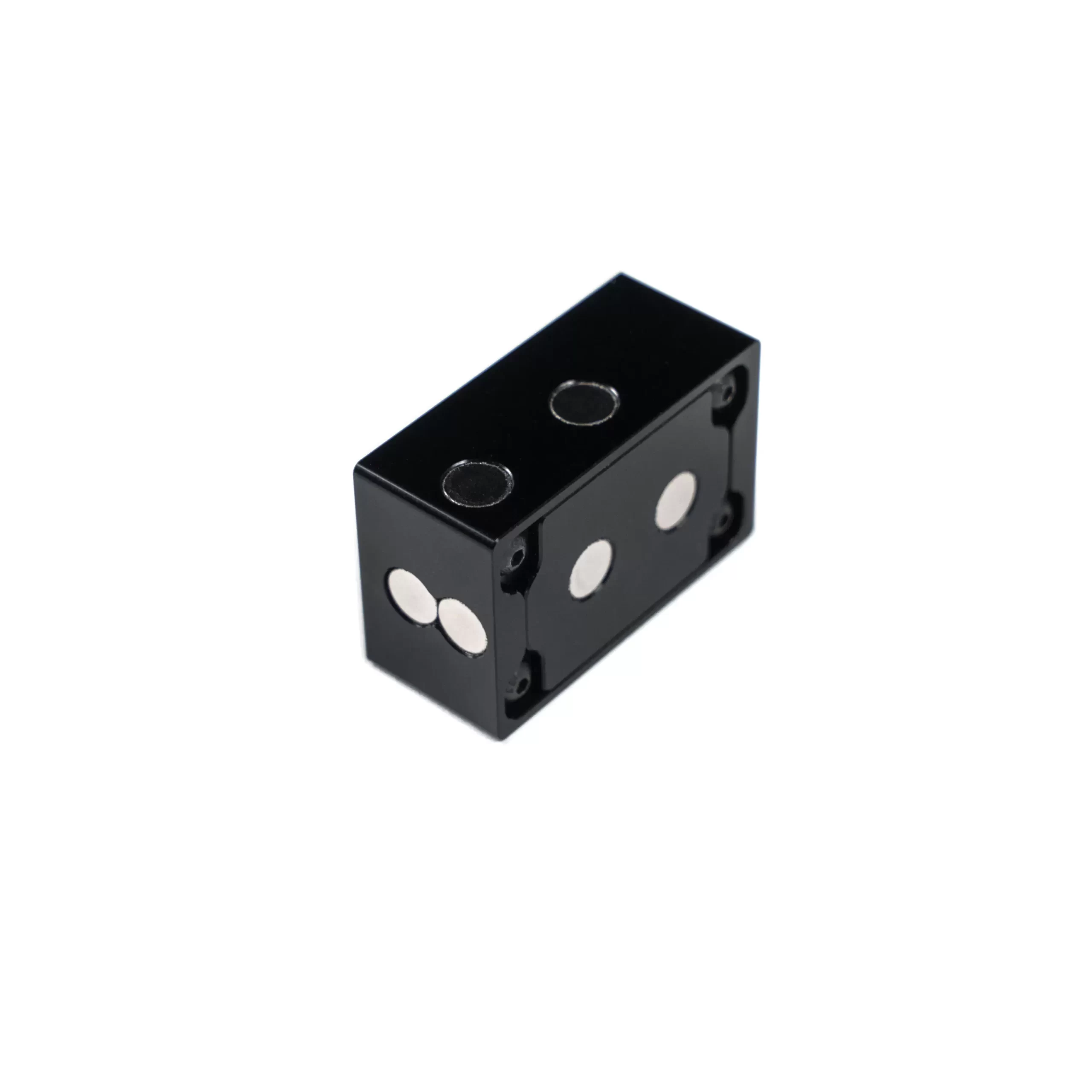

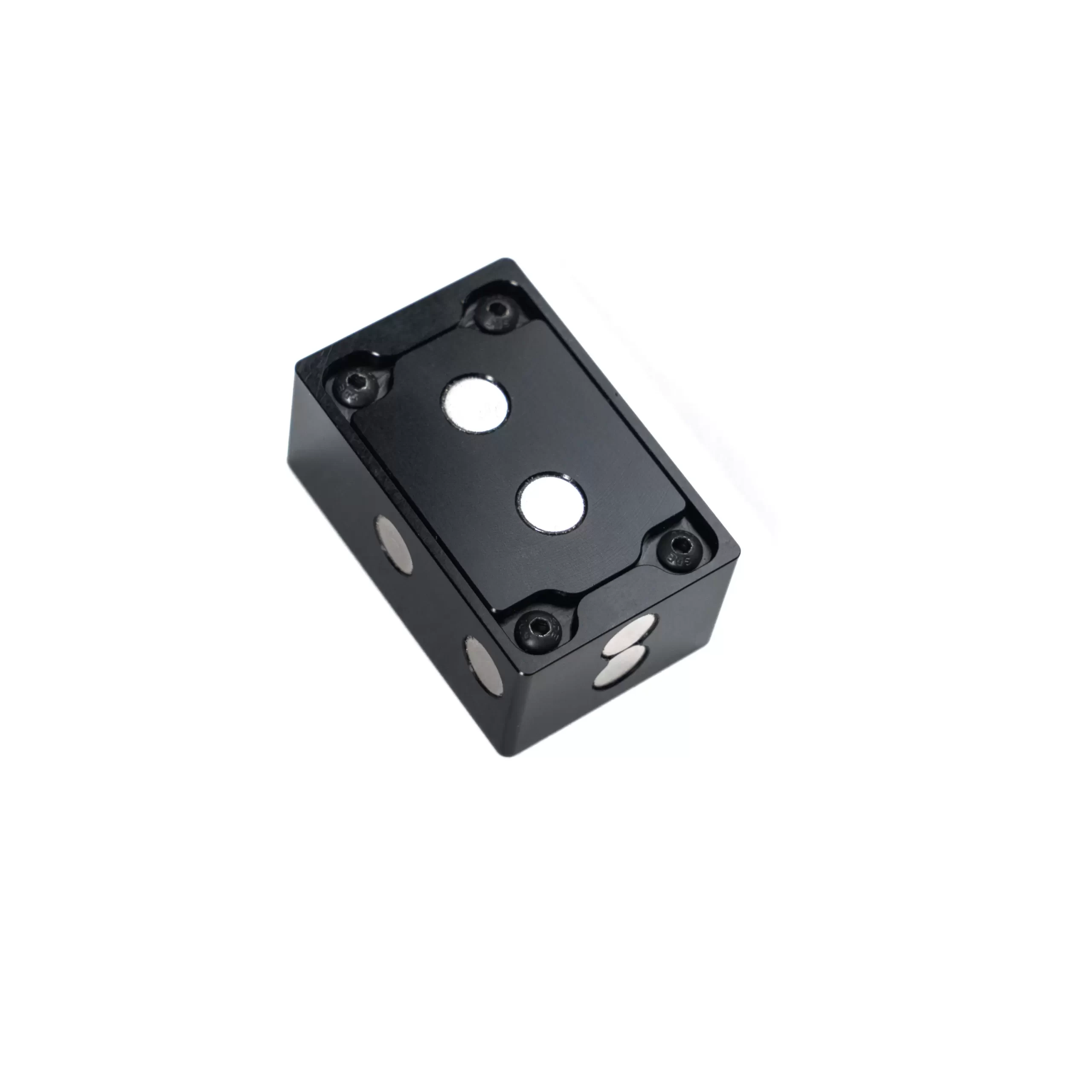

Powerful neodymium magnets of N38 class are used to attach the angle meter to surfaces. They are fixed on the bottom, side and back walls of the device two in a row. The magnets are placed with opposite poles towards each other for the strongest possible adhesion to the surface.

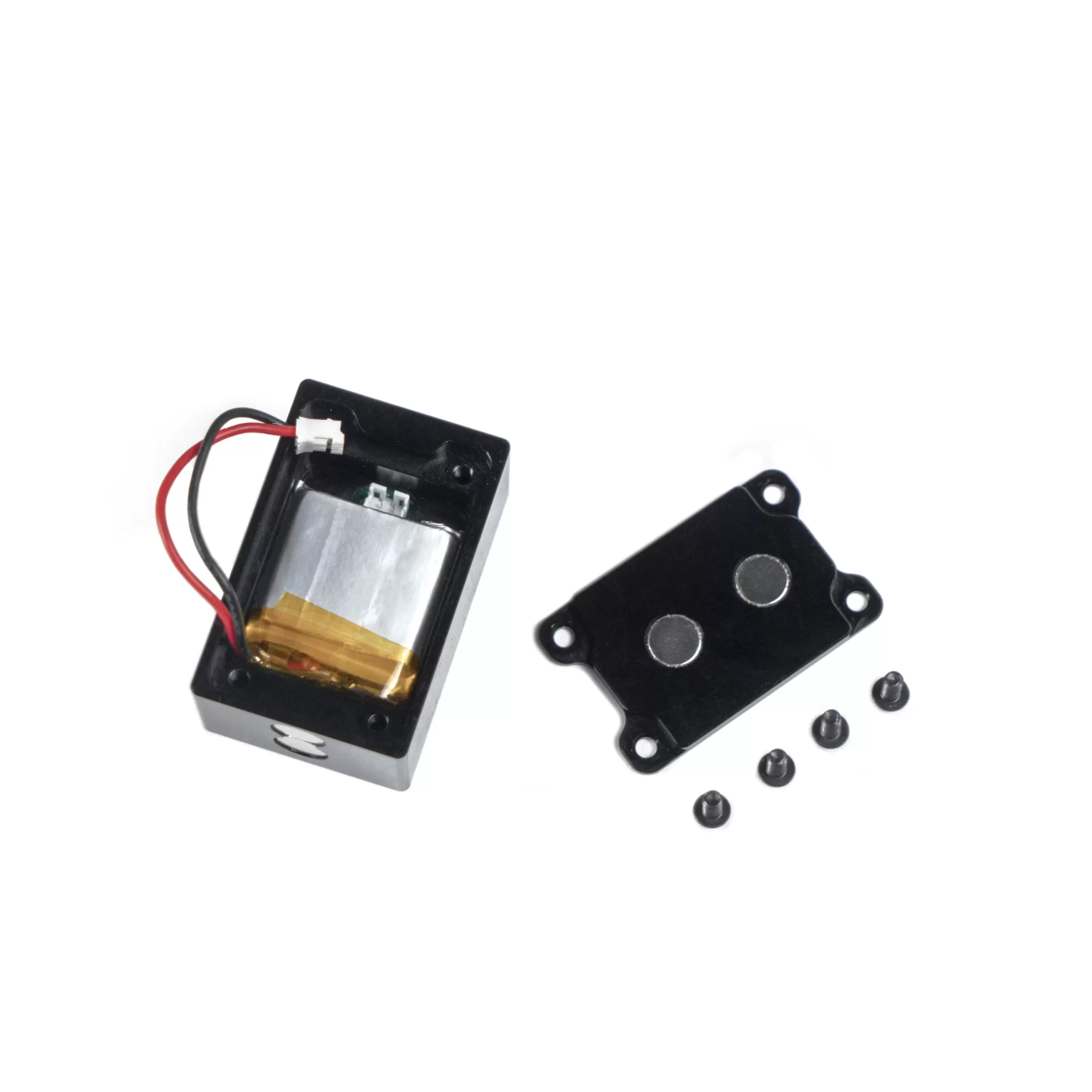

Axicube T2 is equipped with a removable lithium-polymer battery. For charging the device uses a USB Type C connector. One battery charge is enough for 24 hours of continuous work, and the necessity of charging the angelometer will indicate at switching on by the message “Lo.” on the display. Charging is carried out within 15-20 minutes, with current up to 0.5 A and voltage 5 V. For smooth operation the device requires monthly charging.

It is recommended to store the angle meter at a temperature not exceeding +27°C.

Each device contains an individual serial number.

The technical characteristics of the angelometer:

Angle measurement range: 0 – 99,9°
Measurement accuracy: 0.1°
Measurement error: 0.05°
Resolution: 0.1°
Power supply / Battery charging time: Li-Pol, 5 V, 0.5 A.
Operation time: 24 hours
Charge time: 15 – 20 minutes
Auto power off: 5 minutes

Dimensions: 59.5 x 22 x 32 mm.
The weight of the angle meter: 75 gr.

Weight in the package: 160 gr.
