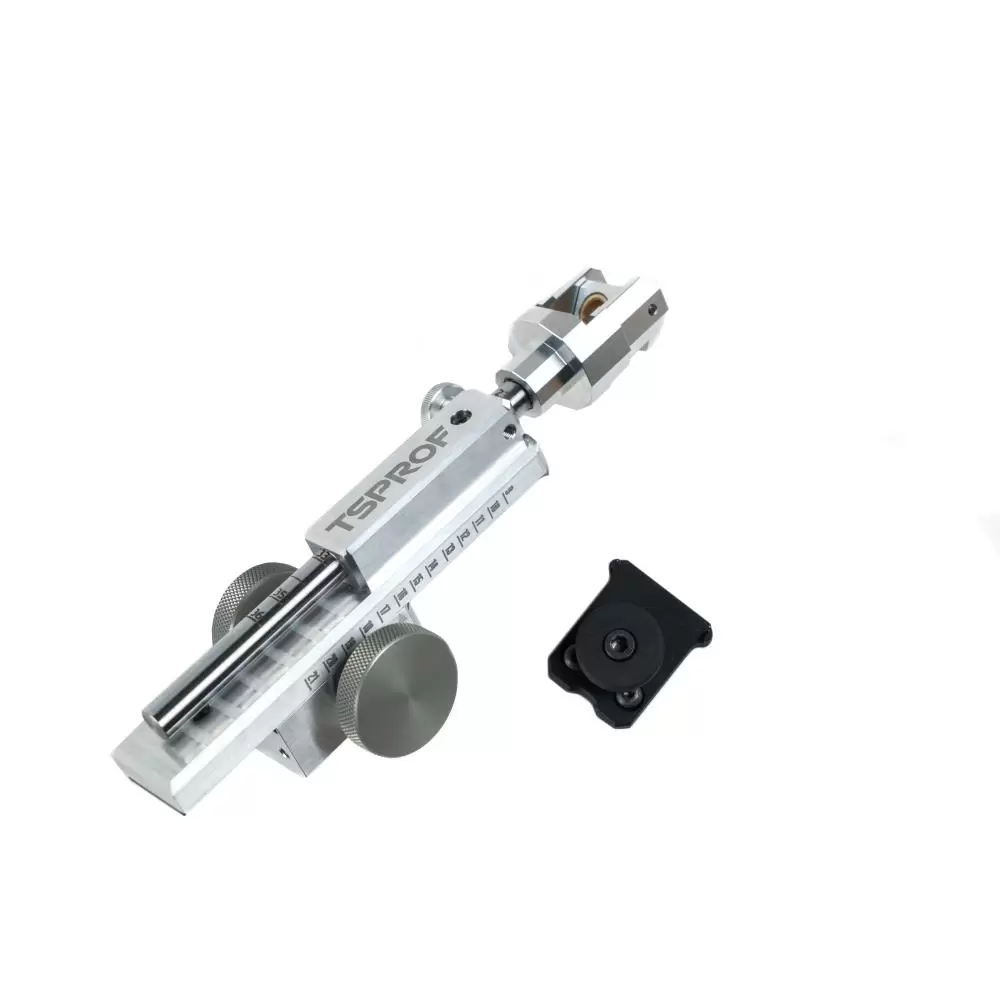

TSPROF K03 Pro upgrade kit, metal (for K02)

The Rail Lifter, which has a rack with involute (toothed) gearing and infinitely variable adjustment, allows you to set the angle with an accuracy of 0.1°. The body with increased angle, due to the improved design, will allow sharpening knives in the range of working angles from 10° (with fillet clamps from 8.5°) to 39° and to a total angle of up to 78°. The movable part is connected to the base by a dovetail, which guarantees absolute accuracy of angle setting. An additional locking screw allows the elevator to be locked rigidly in place during deburring operations. An additional lifting rod is used to increase the sharpening angle. It is now easier to lock its position: the locking screw can be mounted on both sides of the housing. The movable part is connected to the base by a dovetail, which guarantees absolute angle accuracy. And an additional locking screw allows the elevator to be locked rigidly during skinning operations. An additional lifting rod is used to increase the sharpening angle. Now it is more convenient to fix its position: the fixing screw can be installed on both sides of the body.

The lifting stem is made of durable aircraft aluminum. It provides excellent smoothness of movement, thanks to the improved shape of steel rail teeth. Attachment of the slider is through a dovetail type connection, which eliminates backlash of the mechanism during operation, which could affect the quality of sharpening. Angle measuring scale is applied on the side surface of the slider and allows to visually control their installation. A high grade Teflon lubricant is used to ensure the rack and pinion hoist mechanism works. It forms a slippery, corrosion-resistant transparent film that guarantees smooth running, as well as protection from water, oil, dirt and dust.

Adapter designed to mount the rack and pinion lifter of the Profile K03 Pro sharpener on the Profile K02 sharpener. Allows for the use of the modern K03 Pro rack and pinion lifter on the Profile K02 sharpener body. Comes in a set of two parts and a connecting screw. Consists of a washer and a rack and pinion elevator pad. The pad has stops for easy installation of the rack and pinion elevator. The adapter is made of aircraft aluminum with protective matte black anodizing. Due to the nature of the anodizing process, the shade of the coating may vary from part to part.
