AXICUBE One electronic angle meter
Pre-order 14 days
Description

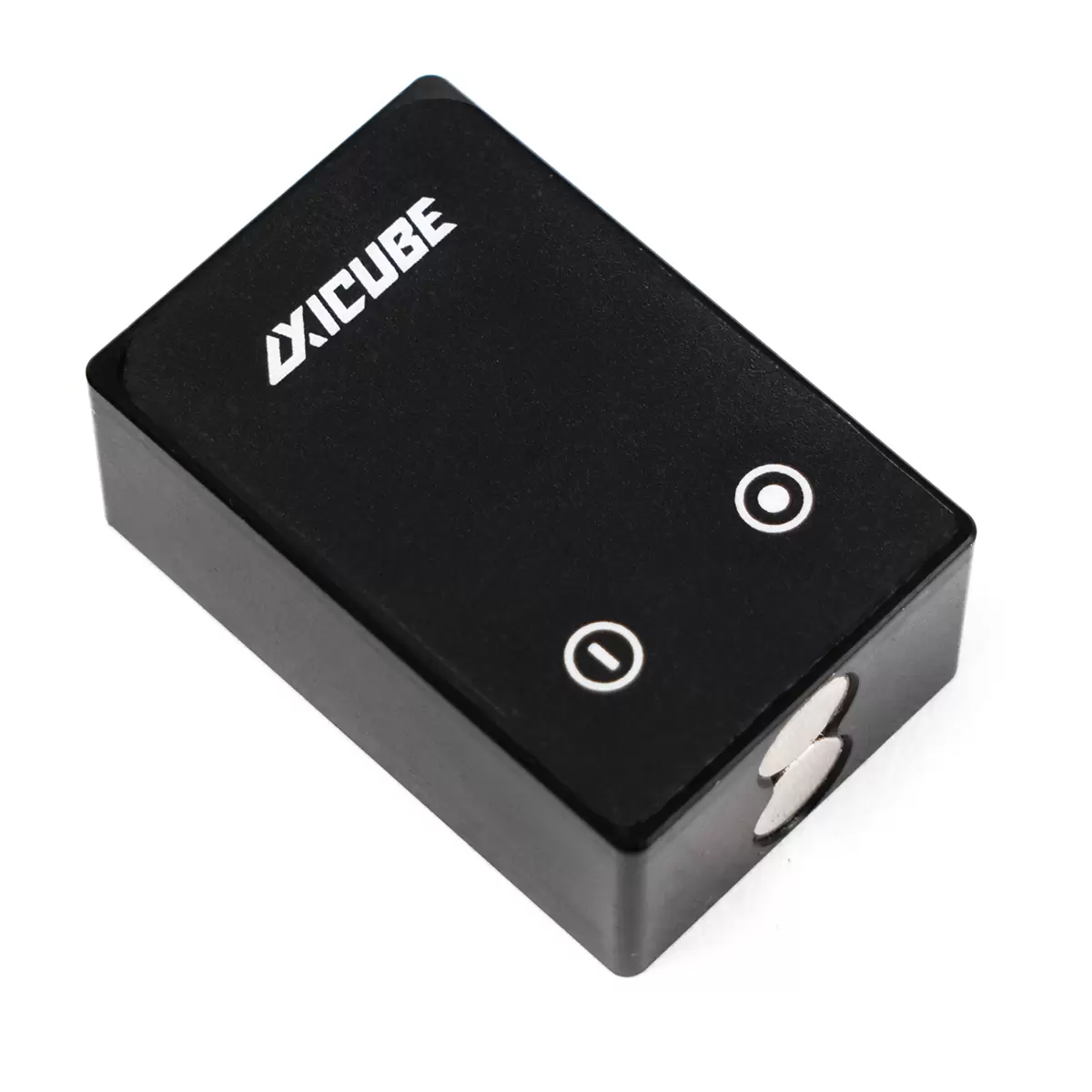

Electronic angle meter Axicube One (rev.3 - revision 3) - is designed for high-precision measurement of geometric angles between planes, as well as angles of deviation of surfaces from the horizontal and vertical (inclinometry) using a built-in electronic sensor of the angle of deviation relative to the gravitational field of the Earth. Axicube One combines the functions of an angle meter and inclinometer. The device is based on iMems (integrated Micro Electro Mechanical System) technology to provide the most accurate angle measurements possible.
The Axicube One is compact in size, which makes it convenient to use on any sharpening device, as well as for measuring angles on various professional and household appliances (machine tools, construction levels, circular and mitre saws, etc.). The electronic angle gauge has an all-metal aluminum housing and a minimal weight of 60 grams.
Powerful neodymium magnets of class N38 are used to attach the angle meter to surfaces. They are mounted on the bottom, side and back of the unit, two in a row. The magnets are positioned with opposite poles toward each other for the strongest possible grip on the surface.
The Axicube One is powered by a built-in rechargeable battery via Micro USB. One charge lasts for a full eight-hour sharpening day. Charging takes 15-20 minutes, with up to 0.5A of current and 5V of voltage. The device requires monthly charging for uninterrupted operation.
The device has two main and two additional modes, can measure angles both in the angle meter mode and in relation to the absolute horizon (in the inclinometer mode).
It is recommended to store the angle meter at a temperature not exceeding +27°C.
Each device contains an individual serial number.
Angle meter specifications:
Angle measurement range: 0 - 99.9°
Measurement accuracy: 0.1°
Measurement error: 0.05°
Resolution: 0.1°
Power / Battery Charging Time: Li-Pol, 5V, 0.5A.
Dimensions:18.3 x 30.6 x 45.8 mm.
Operation time: 24 hours
Charge time: 15-20 minutes
Auto power off: 5 minutes
Dimensions:18.3 x 30, 6 x 45.8 mm.
Angle gauge weight: 60g.
Packaged weight: 140g.
Completion:
Micro USB to USB adapter cable - 1 pc;
Axicube One electronic angle gauge - 1 pc; Electronic angle gauge - 1 pc
Operating manual - 1 pc.
Packaging - 1 piece.
